Details

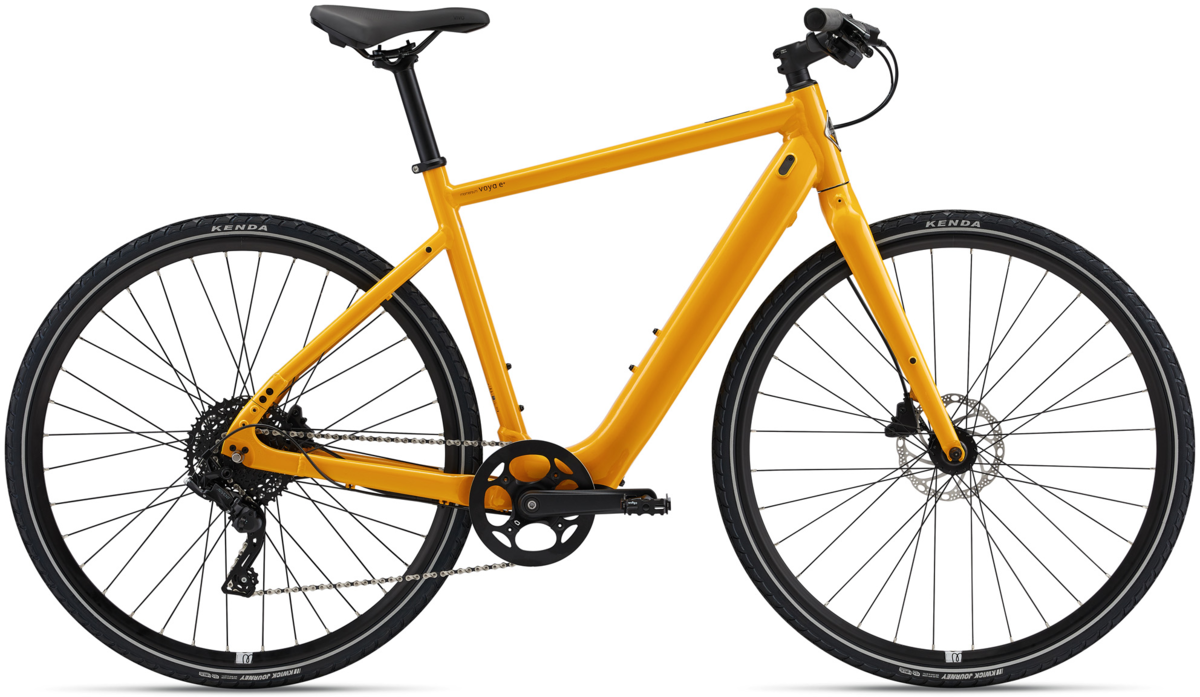

Designed for the speedy city life, we developed a new commute bike with electric power assistant. Lightweight, fast moving and just look like a normal bike. The Voya E+ will take you through a new commute journey. With the slim integrated battery and the only 1.7kg hub motor, the Voya E+ is the lightest ebike in the momentum lineup. The one button touch controller on the top tube provide intuition operate experience, with 3 ride mode support, you can ride steep climb without sweat, reserve more energy for the daily work, even ride more.
Size | Small | Medium | Large |
---|---|---|---|
Seat tube length (mm) | 460 | 520 | 580 |
Seat tube angle (deg) | 74.5 | 73.5 | 73 |
Top tube length (mm) | 550 | 575 | 600 |
Head tube length (mm) | 125 | 150 | 185 |
Head tube angle (deg) | 71 | 72 | 72 |
Fork rake (mm) | 45 | 45 | 45 |
Trail (mm) | 73 | 67 | 67 |
Wheelbase (mm) | 1038 | 1044 | 1064 |
Chain stay length (mm) | 435 | 435 | 435 |
BB drop (mm) | 75 | 75 | 75 |
Stack (mm) | 578 | 605 | 639 |
Reach (mm) | 390 | 396 | 405 |
Stand over (in) | 730 | 772 | 818 |
Handlebar width (mm) | 600 | 640 | 680 |
Stem length (mm) | 80 | 90 | 100 |
Crank length (mm) | 170 | 170 | 170 |
Wheelsize (mm) | 700c | 700c | 700c |
Due to supply-chain issues, Specs are subject to change without notice.
Specs
Frame | ALUXX-Grade Aluminum |
---|---|
Fork | ALUXX SL-Grade Aluminum, OverDrive steerer |
Rims | GX03V Double Wall Aluminum 622x21 |
Hubs | eTracker Sport,9mm QR [F] SyncDrive Move Rear Motor [R] |
Spokes | Stainless 13G[r], 14G[f] |
Tires | Kenda Kwick Journey, K1129, 700x38C, K-Shield, w/Reflective |
Crankset | Forged Alloy, 42T |
Shifters | microSHIFT ADVENT |
Rear Derailleur | microSHIFT ADVENT 9-speed |
Cassette/Freewheel | microSHIFT 11-42T, 9-speed |
Chain | KMC e.9 Sport, e-bike optimized |
Brakes | Tektro HD-R280 hydraulic disc, 160mm rotor |
Brake Levers | Tektro HD-R280 |
Handlebars | Aluminum Riser 31.8x600/640/680mm |
Tape/Grips | Momentum dual compound |
Stem | Aluminum 31.8 |
Seatpost | Aluminium Forged 2-bolt micro adjust |
Saddle | Selle Royal Vivo Ergo |
Pedals | Aluminum Platform |
Accessories & Extras | Optional: Giant Recon series e-bike lights available and direct connectable, ringlock compatible |
Motor | SyncDrive Move, 30Nm, Rear Hub Motor |
Battery | EnergyPak 250Wh |
Controller/Display | RideControl GO, frame integrated LED display, 3 power level |
Charger | EnergyPak 3A smart charger |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Beeswax / Medium | 4712878708075 | 2203226255 | 210000019608 |
Beeswax / Large | 4712878708082 | 2203226257 | 210000019575 |
